Eight Hidden Costs of Using Analog Data in Modern Engineering Workflow

White Paper

April 6, 2026

Andrew

Bank

Strategy & Business Development

Most Model-Based Enterprise (MBE) initiatives assume the hard part is tool adoption, integration, and culture change. In practice, a quieter problem does as much or more damage: analog data.

“Dead text” PDFs, copy/paste requirements, and manual rekeying create expensive friction across the digital thread – engineering, quality, manufacturing, and supply chain – driving slower releases, supplier delays, rework, and avoidable compliance risk.

The fix is pragmatic: convert static/analog content into machine readable, model based product definition (MBPD) so the digital thread can operate as intended.

If you’ve invested in MBE tools – PLM for change control, CAD/MBSE for authoritative design models, QMS for quality, and supplier portals to keep production moving – there’s a simple reason it can still feel slow: static/analog documents are still slowing down your digital thread. When requirements, product attributes, and risk flags live as paragraphs scattered across PDFs, teams are forced back into manual work: search, copy/paste, re‑typing, and “tribal” interpretation.

That cost rarely shows up as one big bill or on one single line item. Instead, it accumulates as a hidden tax across multiple departments: engineering hours lost to document chasing and manual re-keying; extended change-to-release cycles; late surprises that become scrap and rework; supplier lag while people interpret emails and attachments; procurement emergencies when materials are scarce or suppliers do not come through; NCRs; and compliance headaches. What looks like small behaviors – copy/paste, searching drawing notes for regulated materials, and manual interpretation – often compounds into real schedule slip and operational risk.

The Defense Standardization Program Office’s 2026 Digital Standards Strategy (DSS) makes this more than an internal efficiency problem. The Department is pushing standards and interface data into machine-readable forms that third parties can use without constant OEM coordination. If engineering intent still lives only in PDFs, the handoff from design to procurement will stay slower and more fragile than it needs to be.

This whitepaper surfaces the hidden costs in plain English and shows a pragmatic path to turn problematic dead text into contextual, machine-readable, model-based product definition (MBPD) so you can finally get the full benefit and ROI from your digital thread investments.

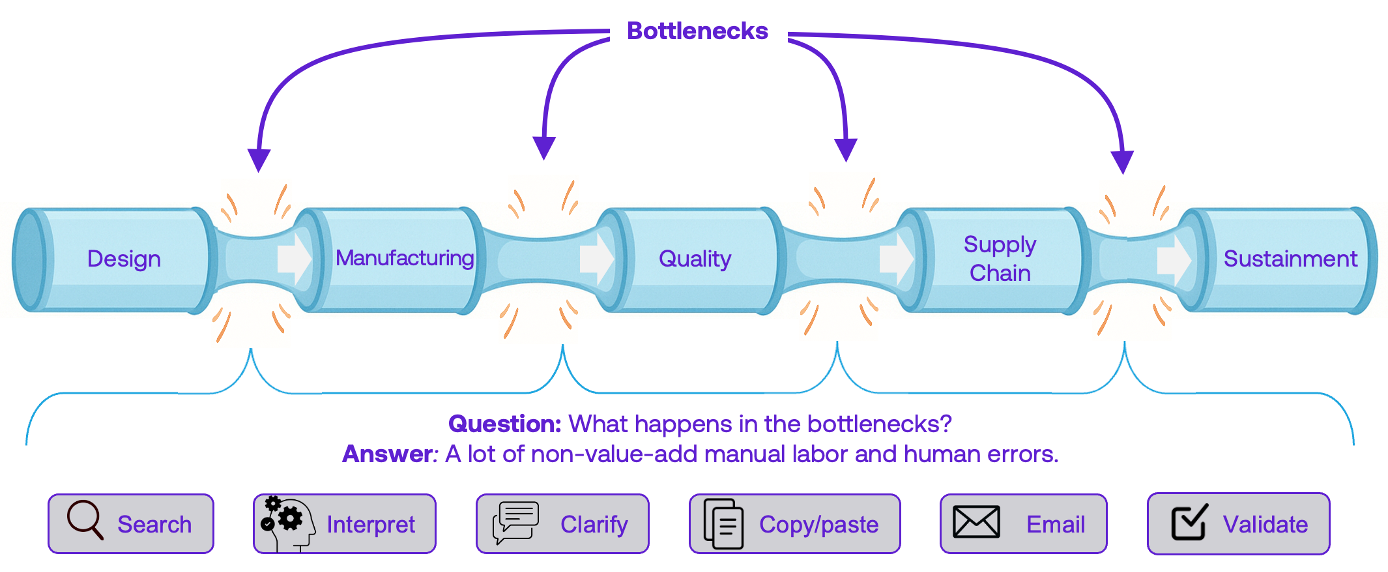

Using static data, like PDF, in modern engineering workflow requires too much manual labor and causes slowdowns (bottlenecks) at multiple stages in product engineering lifecycle. The daily tax adds up.

What Are the Eight Hidden Costs of Using Analog Engineering Data?

1. Finding, extracting, and re-keying requirements (is so 1990)

What it means & what it costs: Even in organizations with PLM and a digital thread, finding the right requirement or test method still means people opening PDFs, hunting for the relevant clause, and interpreting what actually applies. Extracting requirements from complex specs and drawing notes is slow and easy to get wrong – especially when one paragraph contains multiple conditions, exceptions, and references. And once teams finally find the requirement, they often have to copy/paste or re‑type the same critical details into multiple places – PLM/PDM, MES, QMS, ERP, inspection plans, and supplier packets – creating endless opportunities for small errors (a missed tolerance, wrong unit, outdated revision) that ripple into delays and rework. The result is a quiet but constant tax: skilled engineers and planners spending hours each week on (morale-busting) manual clerical work, bottlenecks around releases and change packages, and a growing pile of “shadow copies” of the truth that drift from the source over time.

2. “Threading” requirements into work instructions is manual

What it means & what it costs: Hidden Cost #1 is about finding and extracting the right requirement. This one is harder: deriving a complete, step‑by‑step manufacturing or test process when the governing requirements are scattered across a web of documents: drawing notes, internal specs, customer specs, and external standards (ASTM/SAE/MIL, etc). Each document contains “breadcrumbs” to other requirements: setup conditions, specimen prep, tooling requirements, sampling rules, acceptance criteria, retest rules, reporting language, and exceptions. When all that lives in static PDFs, the only way to build a router, specify work instructions, inspection plans, or test procedures is for a seasoned expert to manually chase references, copy/paste clauses, reconcile revisions, and make judgment calls about what applies.

Just one specification can blossom (like a weed) into a complicated network of dozens of referenced documents, hundreds of pages, and hundreds of requirements to derive the steps for a single task like a heat treat, drilling a hole, or doing a bend test. Now multiply that across thousands of parts and processes – and repeat it every time a standard changes – and you get a slow, fragile workflow where “almost compliant” instructions slip through, suppliers interpret things differently, and the real cost shows up later as rework, delays, and audit headaches.

3. Identifying risk factors is manual and prone to error

What it means & what it costs: Scheduling, compliance, procurement, and manufacturability all depend on identifying risk factors ahead of time: regulated substances, scarce critical mineral requirements, obsolete or withdrawn specs, high-risk suppliers, and long‑lead time processes like castings and forgings. Today those flags are often buried in references and fine print, so teams only discover them by manually reading documents and cross‑checking notes – usually multiple times, in multiple departments. When risk factors are missed early, they show up later as procurement surprises, supplier churn, re‑qualification work, expedited buys, compliance escapes, and last‑minute redesigns that could have been avoided. That’s why this is so expensive: it doesn’t just cost time to hunt – it creates downstream emergencies when supply chain and manufacturing learn too late that a material is restricted, a spec is outdated, or a long‑lead process was never accounted for.

4. Non-machine-readable analog content breaks interoperability and blocks automation

What it means & what it costs: PDF specs and static notes on drawings don’t interoperate with modern systems or with each other, so data can’t flow through the digital thread, and tools can’t act on it. People (and their manual labor) become the integration layer, stitching information between PLM, QMS, MES, ERP, and supplier packets with screenshots and file attachments that get old and diverge from the authoritative source. That brittleness shows up as slow handoffs, inconsistent interpretation, and no reliable way to run automatic checks, plan generation, or compliance scanning at scale. When requirements stay as paragraphs, automation can’t run – and throughput stalls at the human bottleneck.

This is exactly the problem the DSS is trying to fix. It defines digital standards as machine-readable and machine-interpretable content used in digital tools and processes, and it points to models, including Systems Modeling Language (SysML), as one example. If a requirement exists only as prose in a PDF or drawing note, systems cannot use it reliably, so people become the integration layer.

5. Change impact and change-to-release are impaired

What it means & what it costs: Determining how a change impacts products and operations is highly manual: teams must track down every place that a changed clause appears, edit multiple artifacts, and route approvals across functions. While that work crawls, other teams either stall or keep moving on old information, setting up rework, scrap, recalls, and liability risk. The result is longer change-to-release (the time from deciding a change to officially releasing it), extra meetings and re-routes, and a higher chance that outdated wording leaks into production before the update is fully approved.

The DSS also points to a practical Air Force example: MIL-STD-882E was modeled so teams could trace requirements and see downstream effects of change. That is the kind of visibility static documents do not provide. When requirements are copied into disconnected files, change-to-release stays slow.

6. Copy/paste and re-key “debt” creates outdated specs and even more static data

What it means & what it costs: Copying text from standards or drawings into internal documents creates new static data that gets old and diverges from the authoritative source (when the original changes, the copies don’t – so company and supplier versions slowly drift apart). Teams are forced into cleanups, retraining, and re-issuing data packages, and the risk of building to outdated rules increases. Copying large chunks of paid standards also creates licensing risk and more places to fix when the source changes. Over time, this “clone debt” erodes trust in what’s truly current.

7. “Engineering-Ready to Procurement-Ready” is slow and unreliable

What it means & what it costs: After you release a change, suppliers still must interpret it, assess the impact of changes, update routers and work instructions, and qualify before shipping to the new rule. Days turn into weeks and months on long-lead items like castings and forgings.

When engineering intent is trapped in static references, the real cost often shows up later – when procurement discovers that a selected part is obsolete, a preferred material is restricted, or a special process drives a long lead time no one accounted for. At that point, teams scramble for alternates under schedule pressure, often re-validating requirements manually and reworking documentation. This is how organizations become reactive: design choices that looked fine in a PDF become supply chain emergencies after release.

The tangible cost is schedule slip, WIP scrap, expediting fees, and strained relationships – plus the loss of buffer your program was counting on.

8. Rework, defect escape, and late-stage requirement churn

What it means & what it costs: Ambiguous wording, stale references, or copy/paste errors lead to parts or tests that don’t meet requirements, but they don’t always show up immediately; they surface late during inspections, audits, and lead to scrap, rework, and repeat ECOs. Investigations pull engineers and MRB into paperwork instead of design work, and production pauses while batches are corrected and documentation catches up.

These late discoveries don’t just create quality problems – they often trigger procurement disruption: substitute parts, supplier changes, and additional qualification cycles when the original interpretation or source no longer holds. A single outdated standard callout or unclear requirement can quietly lock in the wrong source, then force a costly pivot once reality hits.

Beyond the direct labor and material impact, these late discoveries clog the change pipeline and undermine confidence that the digital thread is delivering one clear, current answer.

The Cuts Add Up

Static documents hide a real tax on your digital thread. It doesn’t show up as one big bill, but as minutes spent hunting for clauses, hours re typing tables, days waiting for approvals, weeks while suppliers rewrite instructions, and piles of avoidable NCRs – spread across design, manufacturing, quality, and the supply chain so no single budget “owns” it.

Fire drills mask the pattern and leaders underweight the friction, because the root cause – requirements that live as text, not data – is hard to see. The result is a strategic blind spot that slows new introductions, inflates cost and erodes confidence. It also keeps supply chain risk invisible until late, when teams discover that a chosen material is restricted, a part is obsolescent, or a supplier constraint forces a redesign or re-source under schedule pressure. The good news: converting documents into structured, machine-readable definitions and delivering them at the point of need changes the daily physics.

How to Get from Engineering Ready to Procurement Ready – Faster

When requirements, materials, processes, and standards are trapped in analog files, engineering and supply chain teams end up solving the same puzzle twice – once to design the part, and again to buy the materials and build it. The data that comes through to procurement (as part of a technical data package, a bid, or some other vehicle) may be “engineering ready”, but it’s not always “procurement ready”.

When the information coming downstream becomes structured and traceable, you can spot problems earlier: regulated materials before they trigger rework, long lead-time processes before they become schedule surprises, and outdated clauses before they reach suppliers. The point isn’t simply to “digitize documents”; it’s to make the engineering intent usable downstream – so procurement, quality, suppliers, and sustainment teams can act on the same source of truth without re-reading and re-interpreting everything. Moving from analog data to model-based data moves you from engineering ready to procurement ready much faster and with much less effort.

What To Do Now

The good news: the daily leaks on your bottom line are avoidable. Turning documents into structured, machine‑readable model-based product definition and delivering them at the point of need changes the daily physics – less hunting, fewer re‑types, faster, cleaner changes. It also lets teams evaluate alternates and mitigate supplier risk earlier – because key constraints (materials, processes, standards, lead-time drivers, and sourcing dependencies) are no longer buried in static text.

If you read this article and think, “Yes! My organization suffers these hidden costs and we need genuine model-based product definition,” then you can learn about SWISS (Semantic Web for Interoperable Specs and Standards). SWISS transforms analog documents and drawings into machine-readable model-based data that flows cleanly and traceably from design to manufacturing, quality, supply chain, and sustainment, helping you close “the last mile of the digital thread” so you capture the full financial and operational benefits of the investments you’ve already made.

Want the Full Picture?

Download the whitepaper to dive deeper on the hidden costs of using analog data. Next, learn about the solution in model-based product definition.

What you’ll learn:

MBPD in one shot: what it is, what it isn’t, and how it coexists with your PLM/CAD tools.
What a “good” requirement looks like as data: subject, attribute, value, units/tolerance, test method, and a built‑in link back to the source clause and revision.
How model-based data enables automated requirements-building in work instructions, test plans, QA, and more.
How MBPD moves through your stack: delivering requirements by reference into PLM, QMS, MES, SCRM, and supplier packets – no copy/paste.
A simple pilot playbook: how to choose a small, end-to-end scope; what to instrument with four KPIs (Engineering Hours, Change-to-Release, Supplier Latency, Rework); and how to show progress in weeks.
